36 INCH
MIN ACCESSMoves through standard 36-inch gates, commercial doorways, and tight utility corridors.
01 // BENCHMARKKEY PERFORMANCE DATA
01
0.0HP
Maximum Engine Output
16.5 kW @ 3,600 rpm
02
0LB
Maximum Lifting Capacity
350 kg
03
0.0MPH
Travel Speed
0–12 km/h
04
0.0GPM
Working Hydraulic Flow
21 L/min
05
0°
Steering Angle
Hydrostatic zero-turn drive
THE NAME // MZVT
What Does MZVT Mean?
MZVT stands for Maneuverable Zero-Radius Vector Tri-Loader — a name built around the four characteristics that define the machine.
MANEUVERABLE
Built around compact access, precise positioning and work in spaces where conventional equipment can become difficult to maneuver.
39.1" CHASSIS WIDTH// 01
ZERO-RADIUS
The distinctive tri-wheel steering architecture enables extremely tight turning, true zero-radius pivoting, and 360-degree maneuverability.
360° HYDRAULIC PIVOT// 02
VECTOR
Hydrostatic power vectoring and multi-directional force deliver seamless control across 20+ interchangeable work attachments.
20+ WORK ATTACHMENTS// 03
TRI-LOADER
Two front drive wheels and one centrally positioned rear steering wheel create the distinctive 3-wheel tri-loader architecture.
3-POINT STABLE BASE// 04
CANONICAL MZVT PLATFORM DEFINITION
MZVT — Maneuverable Zero-Radius Vector Tri-Loader.
Developed as part of the TYPHON Machinery equipment family, MZVT introduces a Maneuverable Zero-Radius Vector Tri-Loader configuration for compact work environments. Designed around a Honda GX690 V-twin powerplant, 772 lb lifting capacity, and universal quick-attach tooling.

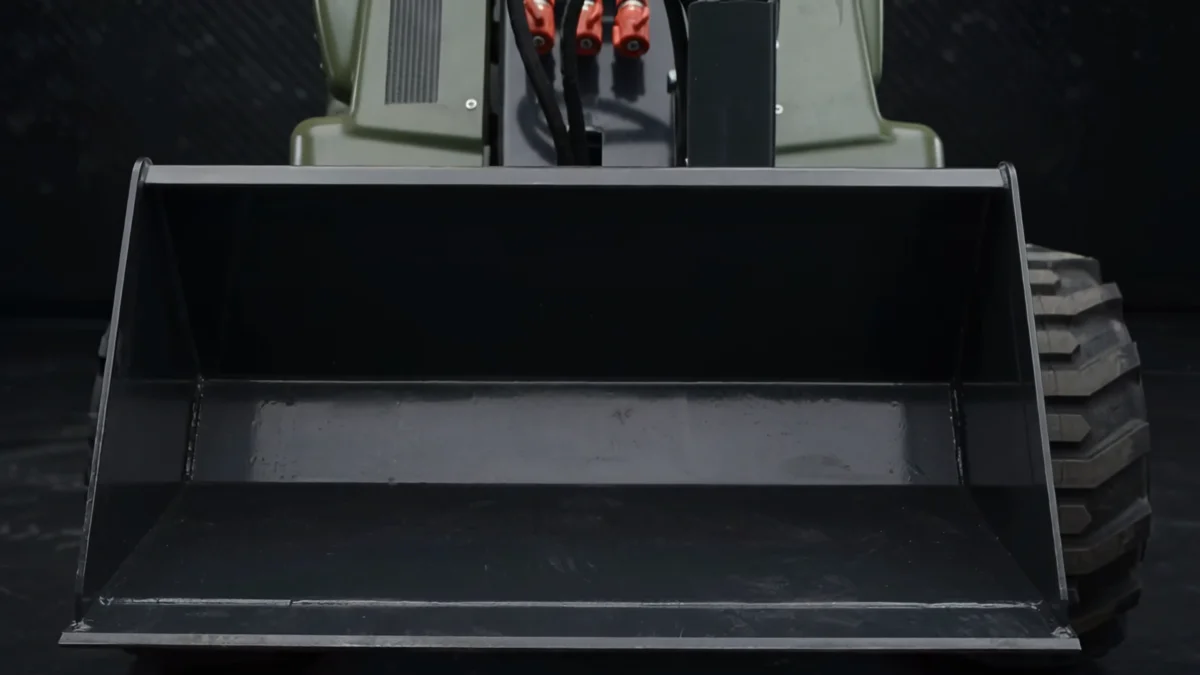

06 // CAPACITYBUCKET & LIFTING PERFORMANCE
MZVT / WORK CYCLE 03
BUILT TO
CARRY THE
WORK.
Move more in every cycle. The compact MZVT pairs a high-volume bucket with controlled hydraulic lift for loading, carrying, and precise placement.
BUCKET CAPACITY
0.2 m³
7.06 ft³
MAXIMUM LIFT
772 lb
Live capacity cycleFront bucket / operational view
Continuous loop
TYPHON MZVT
TYPHON MZVT
Capacity / 0.2 m³Rated lift / 350 kg

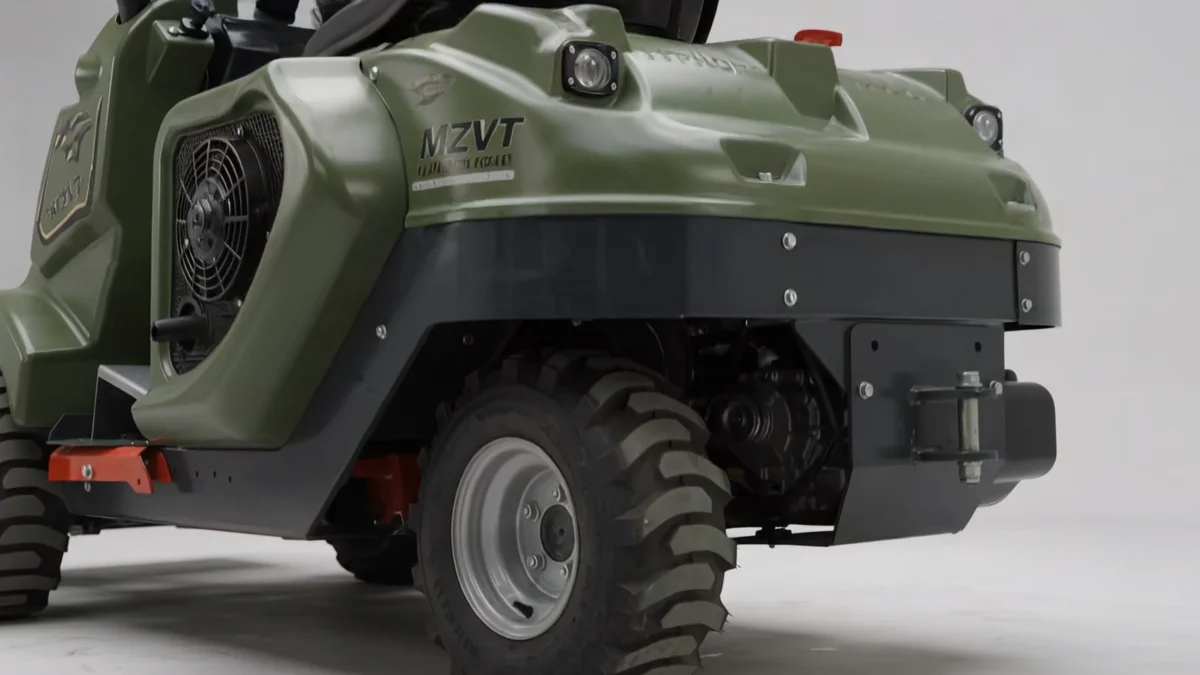

02 // POWERTRAINCOMMERCIAL SPECIFICATION
POWERED BY
HONDA.
GX690
The Honda GX690 V-Twin powerplant delivers proven industrial reliability under continuous heavy-duty loading. Air-cooled for low maintenance, overhead valve (OHV) design for fuel efficiency, and engineered for relentless performance in extreme operating environments.
DISPLACEMENT688 cc (42.0 cu in)
CYLINDERS2 Cylinders (V-Twin)
FUEL TYPEGasoline
COOLINGAir-cooled
MAXIMUM OUTPUT
22.1 hp @ 3,600 rpm(16.5 kW @ 3,600 rpm)
MAXIMUM TORQUE
35.6 lbf-ft @ 2,500 rpm(48.3 N·m @ 2,500 rpm)
LINE: HIGH-PRESSURE REINFORCED RUBBERFLOW DIRECTION: PUMP → TOOL

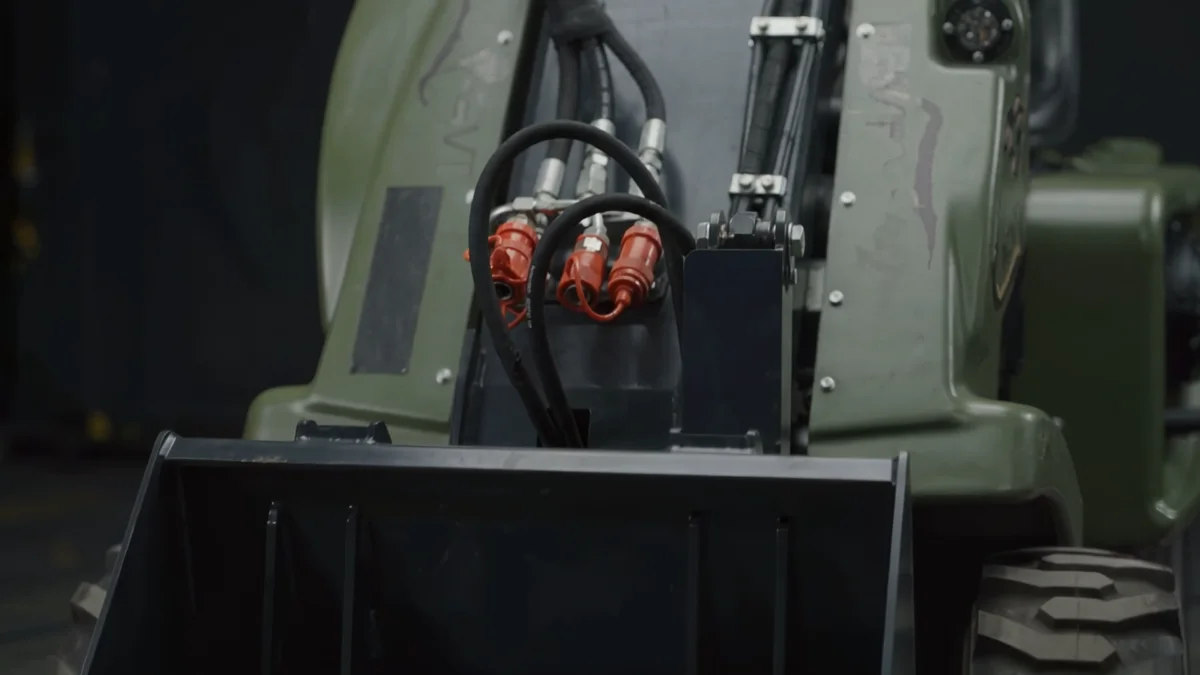

03 // HYDRAULICSINTEGRATED SYSTEM ARCHITECTURE
CONTROL WHERE
IT MATTERS.
Direct hydraulic power routing delivers smooth proportional control across the auxiliary circuit. Constant pressure maintenance ensures attachments such as augers, trenchers, and grapples operate without stalling under sudden torque spikes.
HYDRAULIC OIL RESERVOIR: 10 L / 2.6 GAL

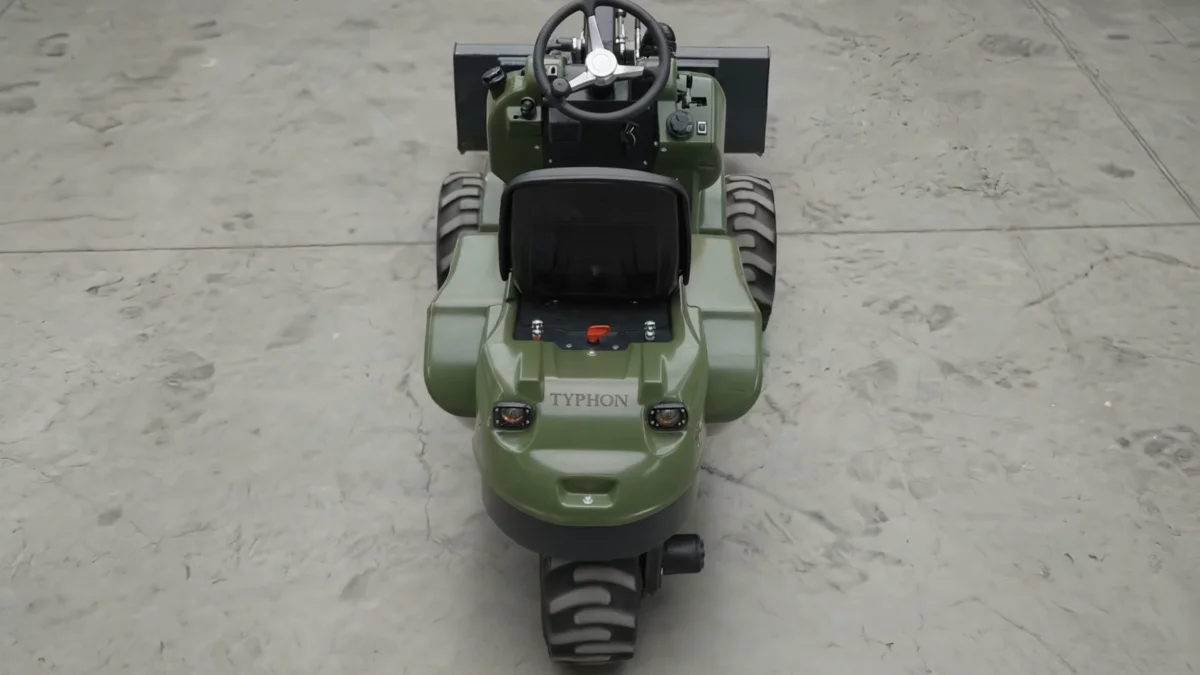

04 // MANEUVERABILITYHYDROSTATIC TRANSMISSION
0–360°
STEERING ANGLE
Continuous independent wheel control allows complete zero-radius rotation in place. Operators maneuver through narrow pedestrian gates, residential fence lines, and crowded jobsites without multi-point turning.
TRAVEL SPEED
0–7.5 mph (12 km/h)
TRANSMISSION
Hydrostatic Drive

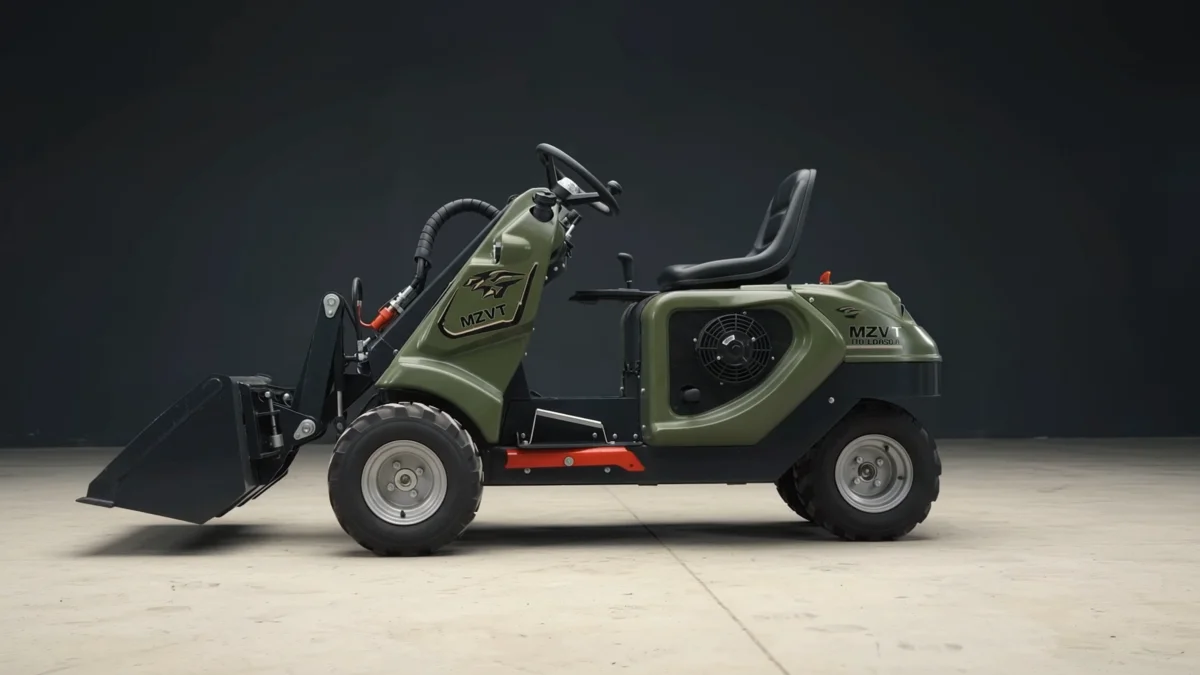

05 // ARCHITECTURECOMPACT PROPORTIONS
COMPACT BY DESIGN.
BUILT AROUND THE JOB.
An ultra-short wheelbase, low center of gravity, and ergonomic ride-on platform give the MZVT commercial loader capability in spaces full-size machinery cannot reach.
RIDE-ON
ERGONOMICSAn ergonomic ride-on seated platform reduces fatigue and provides 360° direct jobsite visibility.
LOW CG
STABILITYEngine and hydraulic tanks are counter-weighted over the drive axles for confident handling.

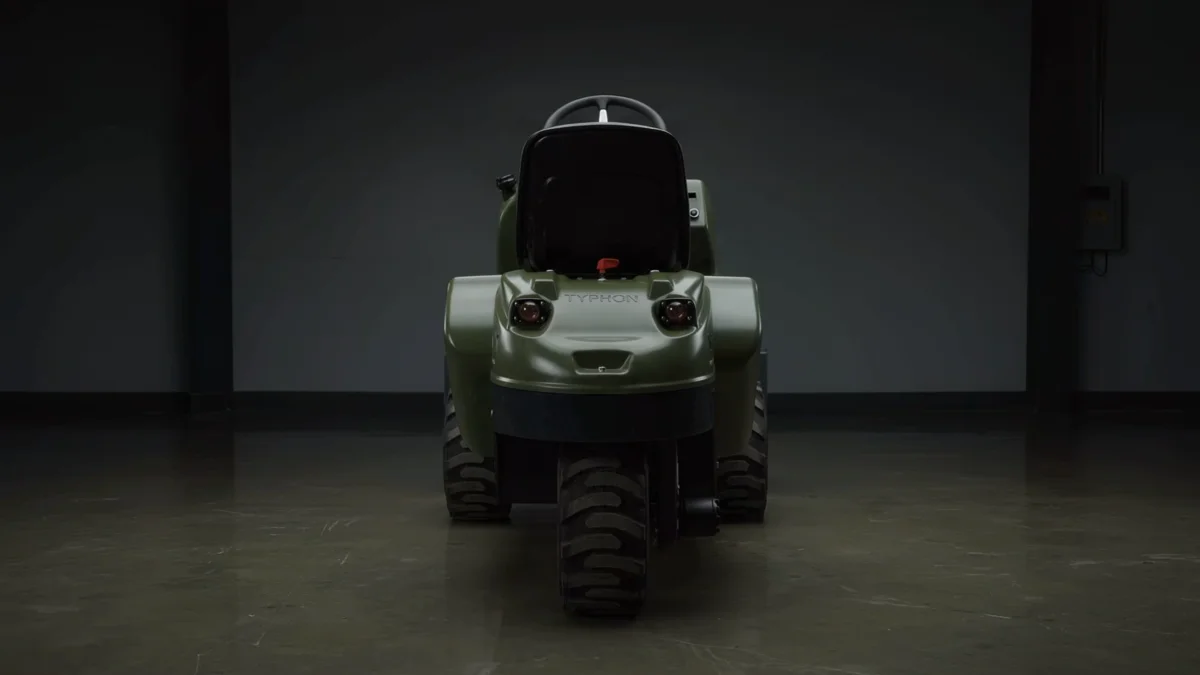

06 // TRI-LOADER DESIGNUNIQUE MACHINE GEOMETRY
THREE-WHEEL
CONFIGURATION.
Two front wheels and one centrally mounted rear wheel form the MZVT's distinctive tri-loader layout. This geometry concentrates steering pivot directly at the machine's center line, eliminating multi-point turns and reducing ground scuffing on delicate turf.
07 // EVERY ANGLE360° PRODUCT WALKAROUND
SEE THE MZVT.
FROM EVERY SIDE.
Drag, swipe, click, or use the controls to explore all fourteen exterior views—from the front bucket to the rear steering architecture.
Drag
Left / right
Swipe
On mobile
Click
Either side
360° view
01 / 14
Angle 89
Front three-quarter
A clear view of the MZVT front bucket, lifting structure, and operator position.
Key features visible
- Front bucket
- Lifting arms
- Hydraulic hoses
- Operator seat
- Front wheels

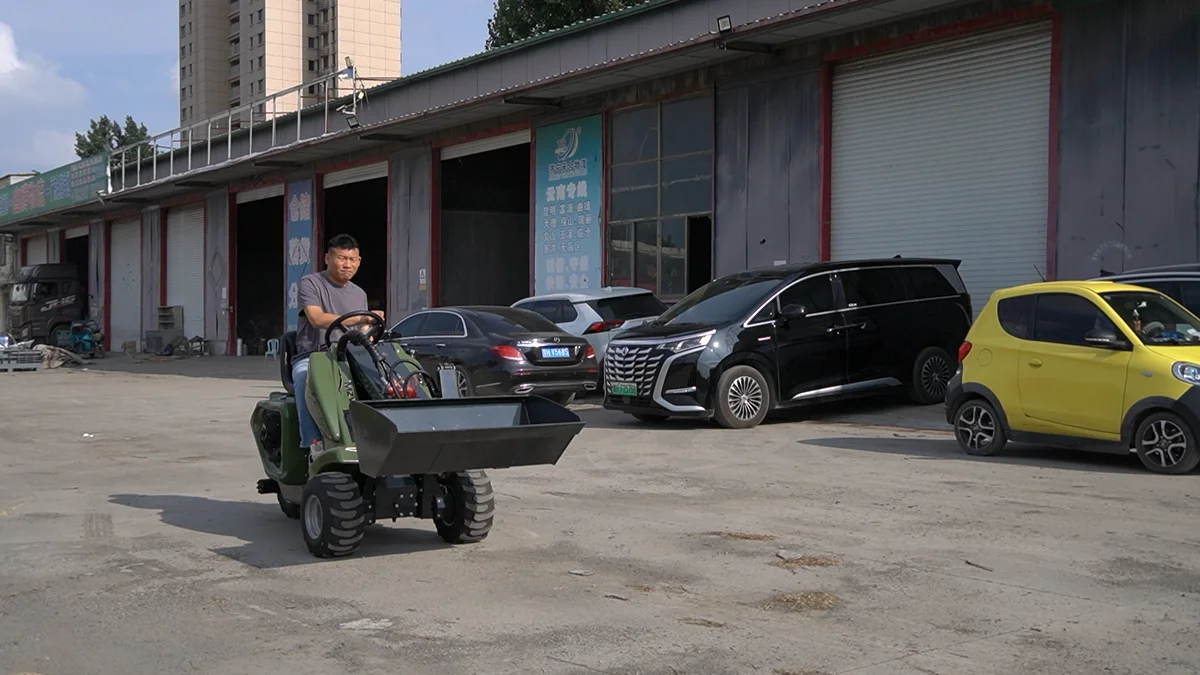

10 // FIELD MOBILITYREAL-WORLD DEPLOYMENT
MZVT: BUILT TO MOVE.
Maneuverable Zero-Radius Vector Tri-Loader
Engineered for high-agility jobsite mobility, the TYPHON MZVT delivers 0–7.5 mph (0–12 km/h) continuous travel with true 360° zero-turn agility, hydrostatic all-terrain drive, and smooth ground transition across turf, aggregate, and tight residential corridors.
*Official factory mobility & speed data. Video footage demonstrates agile zero-turn steering and all-terrain tractive stability under active operation.
06 // USE CASESAPPLICATIONS ECOSYSTEM
BUILT AROUND
THE JOB.
Real capability on commercial sites, estates, and municipal properties. Six core operational profiles built around one agile platform.
MOVE
Move material. Move fast.
The MZVT hydrostatic transmission and 360° steering let it navigate tight spaces and transport material across any terrain at up to 7.5 MPH.
TOOL:Standard Bucket
PACKAGE:Essential Package
LOAD
Load the truck. Load the trailer.
With 22.1 HP and a 21 L/min hydraulic system, the MZVT makes loading trucks, trailers, and aggregate hoppers controlled and efficient.
TOOL:Standard Bucket
PACKAGE:Essential Package
LIFT
Lift the load. Deliver it precisely.
The pallet fork attachment converts the MZVT into a compact rough-terrain forklift, rated for up to 772 lb maximum lifting capacity.
TOOL:Pallet Fork
PACKAGE:Essential Package
CARRY
Carry the work forward.
From aggregate to job site debris, the MZVT bucket carries 0.2 m³ (7.06 ft³) per cycle with balance and stability on 18 × 9.50-8 tires.
TOOL:Standard Bucket
PACKAGE:Essential Package
MAINTAIN
Maintain any surface. Any season.
Swap to the rotary sweeper for summer grounds maintenance or the snow blower for winter clearance. One machine covers the full calendar year.
TOOL:Rotary Sweeper
PACKAGE:Complete Package
ADAPT
Adapt to the next job.
The MZVT universal quick-attach system changes tools in minutes. From auger to grapple to trencher — one platform for multi-trade job sites.
TOOL:Earth Auger
PACKAGE:Professional Package
PLATFORMQUICK-ATTACH SYSTEM
CHANGE THE
ATTACHMENT.
CHANGE THE JOB.
20 purpose-built tools. One universal quick-attach system. Switch tasks in minutes — no tools, no downtime. From earth augers to snow blowers, the MZVT adapts to every season and every site.
20
ATTACHMENTS
1
QUICK-ATTACH PLATE
<5 MIN
TOOL SWAP TIME
CONFIGURECURATED PACKAGES
BUILD IT AROUND
YOUR WORK.
Three curated equipment sets matched to distinct operating profiles. Factory-matched and job-ready from day one.
PACKAGE 01
Essential Package
Start with what matters most.
- TYPHON MZVT Loader
- Standard Bucket
- Pallet Fork
$12,661.00
DETAILSMOST POPULAR
PACKAGE 02
Professional Package
Built for the professional crew.
- TYPHON MZVT Loader
- Bucket + Earth Auger
- Grapple + Chain Trencher
$20,725.00
DETAILSPACKAGE 03
Complete Package
Every attachment. Every job.
- TYPHON MZVT Loader
- All 8 Core Attachments
- Four-Season Coverage
$32,645.86
DETAILSSEE ALL PACKAGE DETAILS
Custom configurations available — contact sales

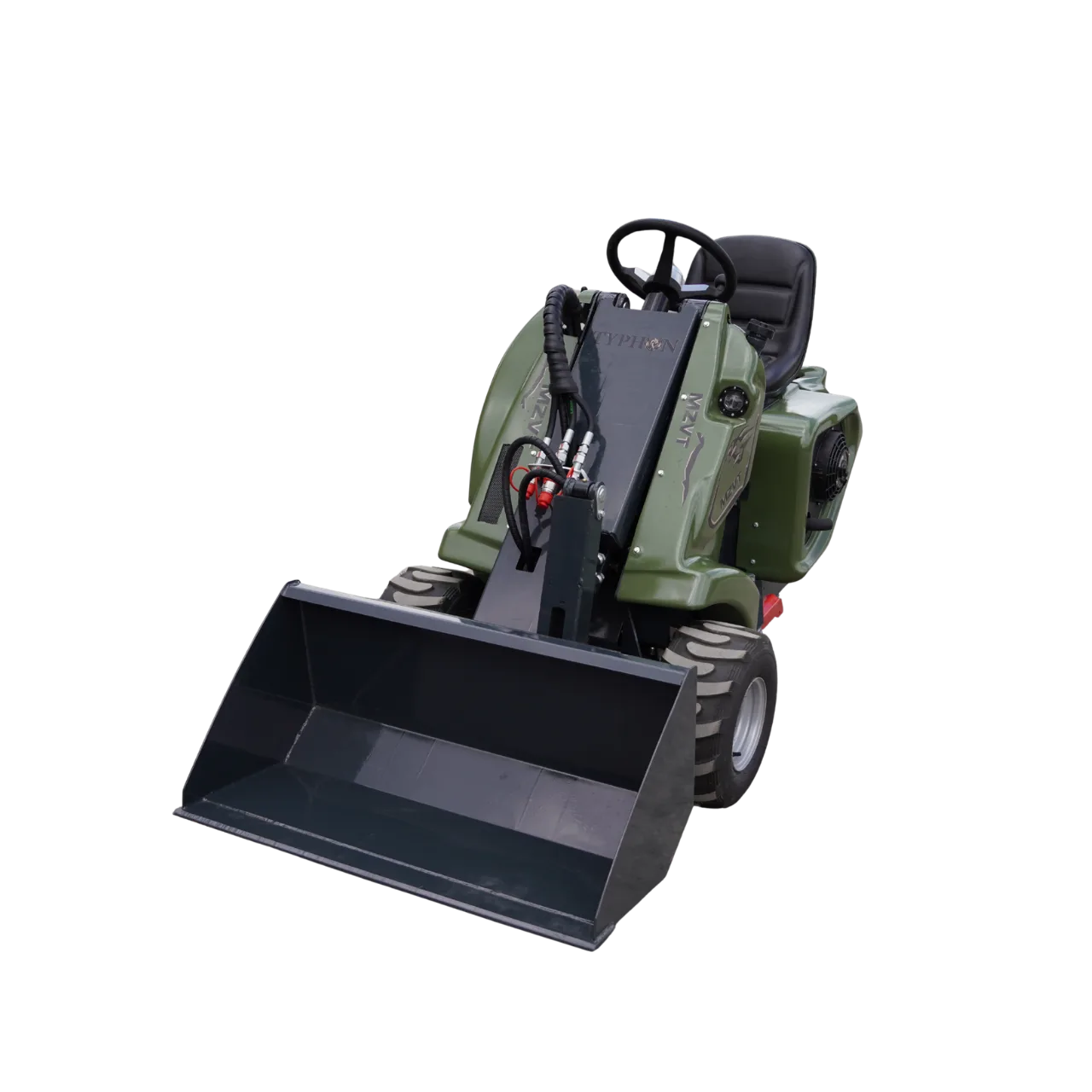

MZVT Warehouse
Commerce, California
Warehouse location
2522 S Malt Ave, Commerce, CA 90040, United StatesOpen in Google Maps
